Slot Machine Notes
33 Foot long sections. Floor is 9 feet wide. 9.5 feet at top. Side walls 40 inches tall from the inside. Cat 321/325 excavator. 11 articulated cars. Maybe 38' in length. All cars are mirrors of each other except for the equipment on the actual car.
| Car Position | Car Details |
|---|---|
| 1 | A End Car |
| 2 | B Equipment Box |
| 3 | C Ladder and air equipment |
| 4 | D No external equipment |
| 5 | C Ladder and air equipment |
| 6 | D No external equipment |
| 7 | C Ladder and air equipment |
| 8 | D No external equipment |
| 9 | C Ladder and air equipment |
| 10 | B Equipment Box |
| 11 | E End Car |
| Car Details | Equipment | Count |
|---|---|---|
| A End Car | 4 ladders, 1 air tank, 1 air equipment | 1 |
| B No external equipment | None | 3 |
| C Ladder and air equipment | 2 ladders, 1 air tank, 1 air equipment | 4 |
| D Equipment Box | None | 2 |
| E End Car | 4 ladders, 1 air tank, 1 air equipment | 1 |
Required small parts:
- 10 joint covers
- 16 ladders
- 6 air tanks
- 6 air equipment
- 2x Coupler screw length CM2x4
- 2x Truck screw end car M2x6
- 8x Truck screw length M2x10
- 24x 36" wheels
- 12x Trucks
Tasks
- Print ladders
- Glue detail parts

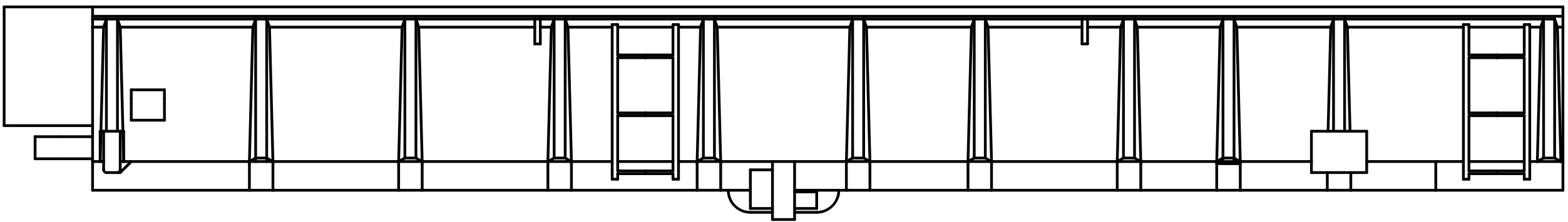

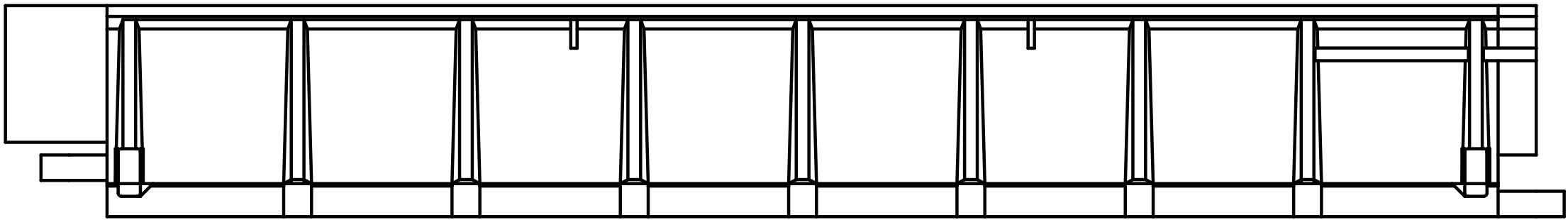

Car Drawings

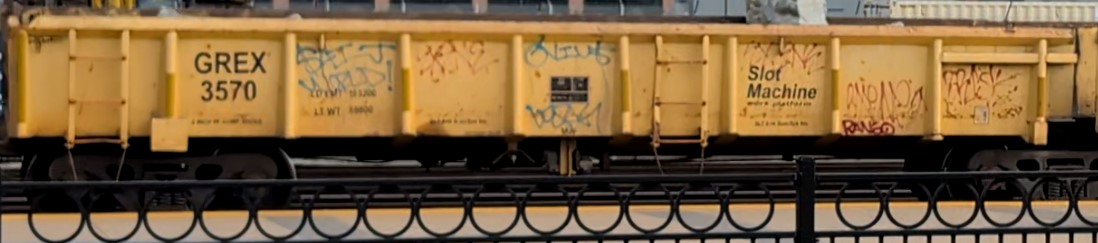

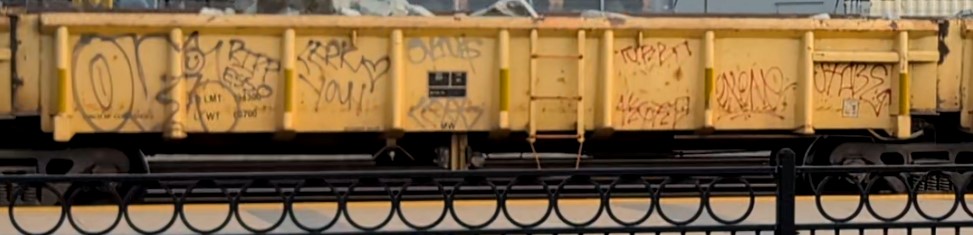

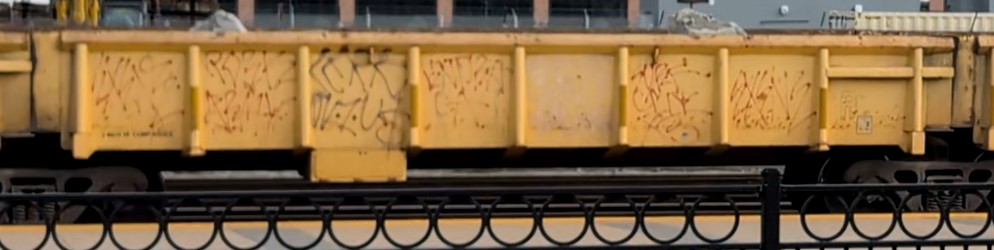

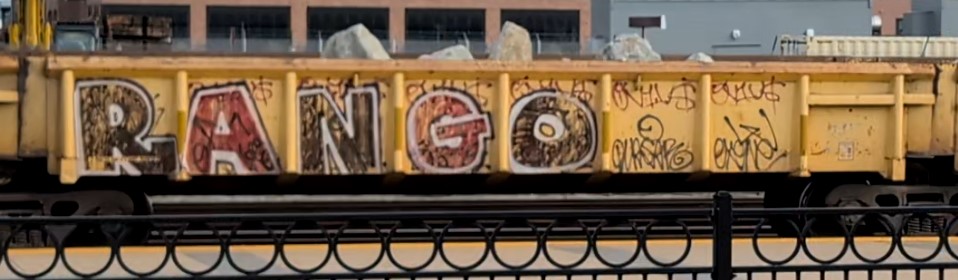

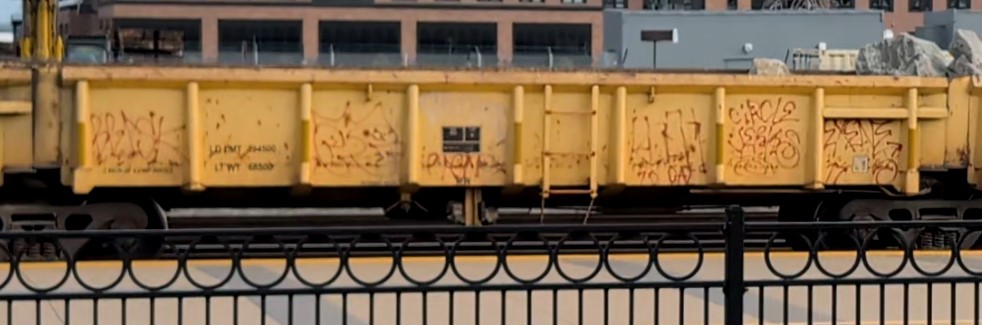

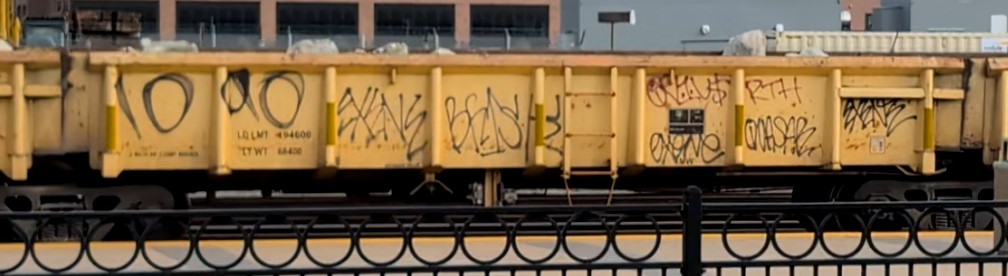

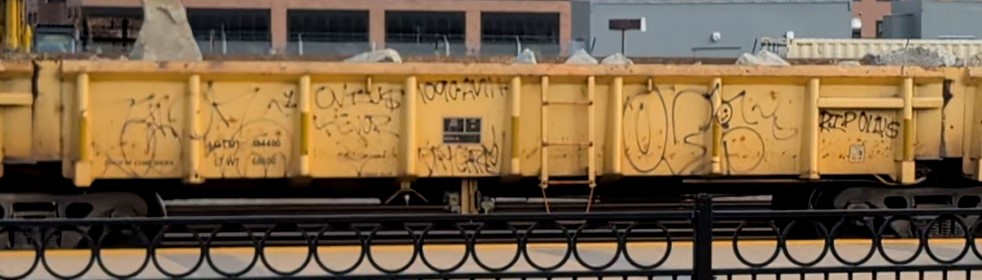

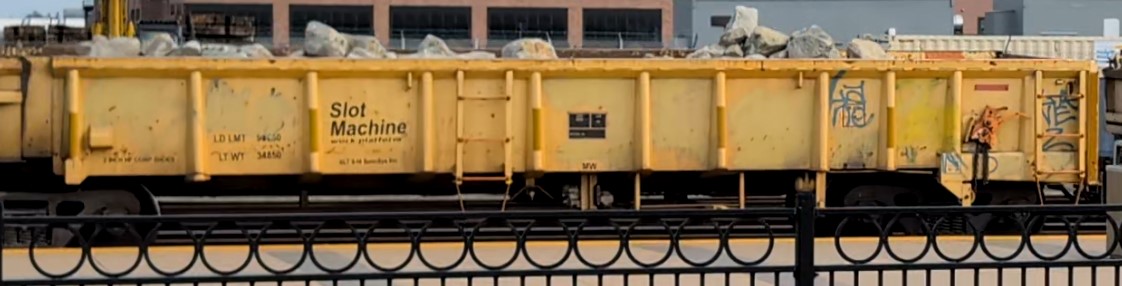

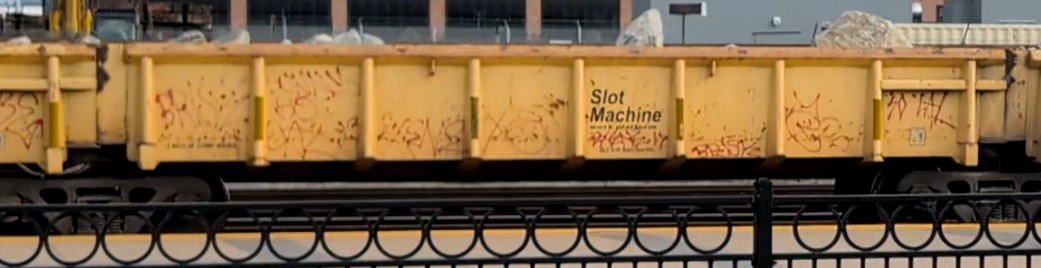

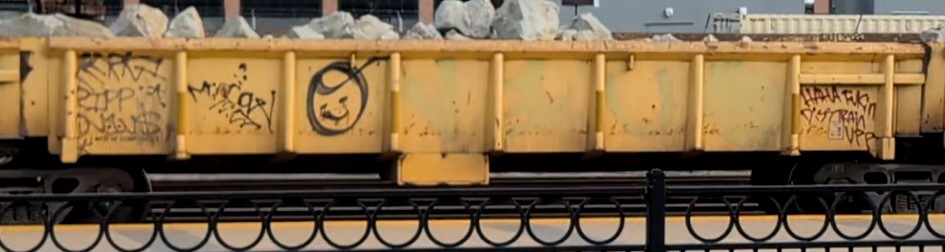

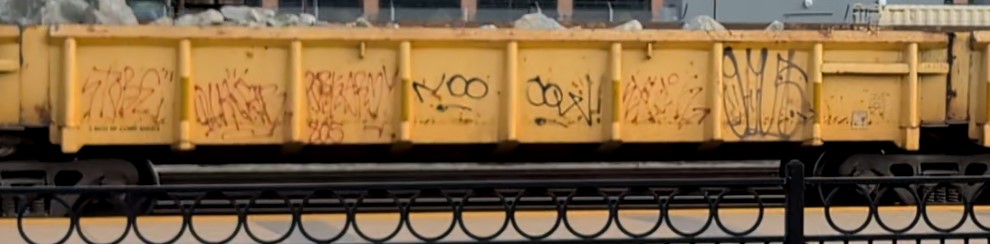

Real Car Pictures
